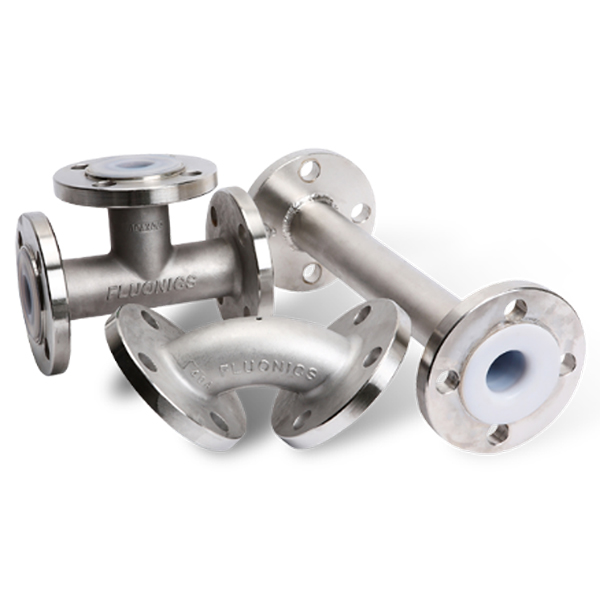

Lined Pipe & Fittings
FEC – Flared End Connections
FEC – Flared End Connections
MAIN FEATURES
- Fully lined pipe and fittings for highly corrosive media
- Full compliance to lining requirements of ASTM F1545
- Lower possibilities of defects by minimizing weld points
SPECIFICATIONS
- Available sizes DN15 ~ DN200
- Materials
– Stainless Steel
– Carbon Steel - End Connection
– ASME B16.5, 150LBS
– JIS B2220, 10K
– EN1092-1, PN16 - Test and inspection ASTM F1545
- Pressure rating Max. 16bar
- Temperature -29 ~ 200℃
OPTIONS
- Fixed / Lap Joint flanges
- Liner options: PTFE, PFA, PVDF, PP
