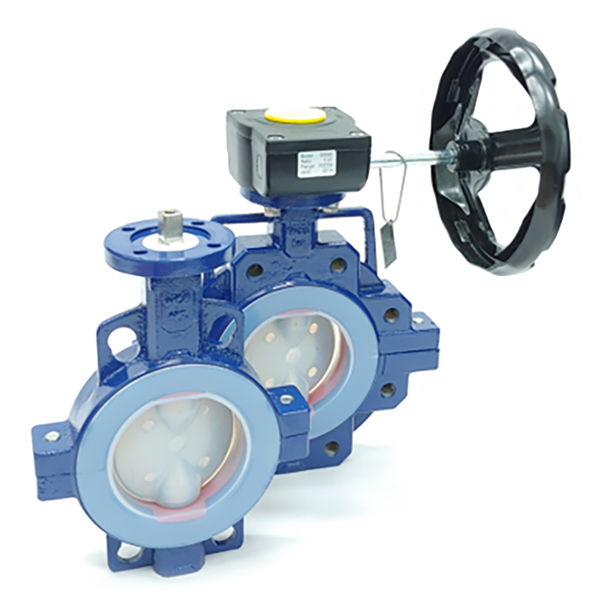

Lined Butterfly Valve
FBU
FBU 주요 특징
- Fully lined butterfly valve for chemically corrosive media
- Self-adjusting stem sealing system
- Fully lined one-piece type of disc and stem, enabling maximizing bonding strength and preventing the stem from any blow-out
상세 사양
- Available sizes DN50 ~ DN300
- Body Materials
– Stainless Steel
– Carbon Steel - End Connection
– ASME B16.5, 150LBS
– JIS B2220, 10K
– EN1092-1, PN10, PN16 - Face to face EN558-1
- Test and inspection API598
- Pressure rating Max. 16bar
- Temperature -29 ~ 200℃
옵션
- Automations
- Wafer / Lug
