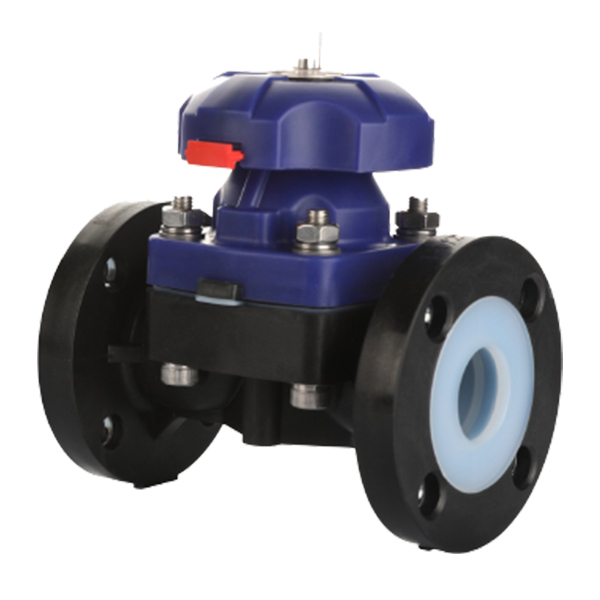

Lined Composite Plastic Diaphragm Valve
CDI1
CDI1 주요 특징
- Fully lined composite diaphragm valve for chemically corrosive media
- Plastic-metal hybrid structure
- Applicable in severe service environment that conventional plastic valves cannot be used
- Lockable handwheel for security (DN40)
상세 사양
- Available sizes DN15~DN150
- Body Materials
– Polypropylene(PP) + G/F40%
– Polyphenylene Sulfide(PPS) + G/F30% - End Connection
– ASME B16.5, 150LBS
– JIS B2220, 10K
– EN1092-1, PN16 - Face to face
– Fluonics STD
– EN558-1 - Test & Inspection DIN – EN12266-1
- Pressure rating Max. 10bar
- Temperature
-10 ~ 130℃ (PP+GF40%)
-20 ~ 160 ℃ (PPS+GF30%)
옵션
- 3-layered, 4-layered diaphragms
